Featured Functions

1. Downsampling Functions

1.1 date_bin Function

Description

The date_bin function is a scalar function that aligns timestamps to the start of specified time intervals. It is commonly used with the GROUP BY clause for downsampling.

• Partial Intervals May Be Empty: Only timestamps that meet the conditions are aligned; missing intervals are not filled.
• All Intervals Return Empty: If no data exists within the query range, the downsampling result is an empty set.

Usage Examples

Sample Dataset: The example data page contains SQL statements for building table structures and inserting data. Download and execute these statements in the IoTDB CLI to import the data into IoTDB. You can use this data to test and execute the SQL statements in the examples and obtain the corresponding results.

Example 1: Hourly Average Temperature for Device 100

SELECT date_bin(1h, time) AS hour_time, avg(temperature) AS avg_temp
FROM table1
WHERE (time >= 2024-11-27 00:00:00  AND time <= 2024-11-30 00:00:00)
      AND device_id = '100'
GROUP BY 1;

Result

+-----------------------------+--------+
|                    hour_time|avg_temp|
+-----------------------------+--------+
|2024-11-29T11:00:00.000+08:00|    null|
|2024-11-29T18:00:00.000+08:00|    90.0|
|2024-11-28T08:00:00.000+08:00|    85.0|
|2024-11-28T09:00:00.000+08:00|    null|
|2024-11-28T10:00:00.000+08:00|    85.0|
|2024-11-28T11:00:00.000+08:00|    88.0|
+-----------------------------+--------+

Example 2: Hourly Average Temperature for Each Device

SELECT date_bin(1h, time) AS hour_time, device_id, avg(temperature) AS avg_temp
FROM table1
WHERE time >= 2024-11-27 00:00:00  AND time <= 2024-11-30 00:00:00
GROUP BY 1, device_id;

Result

+-----------------------------+---------+--------+
|                    hour_time|device_id|avg_temp|
+-----------------------------+---------+--------+
|2024-11-29T11:00:00.000+08:00|      100|    null|
|2024-11-29T18:00:00.000+08:00|      100|    90.0|
|2024-11-28T08:00:00.000+08:00|      100|    85.0|
|2024-11-28T09:00:00.000+08:00|      100|    null|
|2024-11-28T10:00:00.000+08:00|      100|    85.0|
|2024-11-28T11:00:00.000+08:00|      100|    88.0|
|2024-11-29T10:00:00.000+08:00|      101|    85.0|
|2024-11-27T16:00:00.000+08:00|      101|    85.0|
+-----------------------------+---------+--------+

Example 3: Hourly Average Temperature for All Devices

SELECT date_bin(1h, time) AS hour_time, avg(temperature) AS avg_temp
  FROM table1
  WHERE time >= 2024-11-27 00:00:00  AND time <= 2024-11-30 00:00:00
  group by 1;

Result

+-----------------------------+--------+
|                    hour_time|avg_temp|
+-----------------------------+--------+
|2024-11-29T10:00:00.000+08:00|    85.0|
|2024-11-27T16:00:00.000+08:00|    85.0|
|2024-11-29T11:00:00.000+08:00|    null|
|2024-11-29T18:00:00.000+08:00|    90.0|
|2024-11-28T08:00:00.000+08:00|    85.0|
|2024-11-28T09:00:00.000+08:00|    null|
|2024-11-28T10:00:00.000+08:00|    85.0|
|2024-11-28T11:00:00.000+08:00|    88.0|
+-----------------------------+--------+

1.2 date_bin_gapfill Function

Description:

The date_bin_gapfill function is an extension of date_bin that fills in missing time intervals, returning a complete time series.

• Partial Intervals May Be Empty: Aligns timestamps for data that meets the conditions and fills in missing intervals.
• All Intervals Return Empty: If no data exists within the query range, the result is an empty set.

Limitations:

1. The function must always be used with the GROUP BY clause. If used elsewhere, it behaves like date_bin without gap-filling.
2. A GROUP BY clause can contain only one instance of date_bin_gapfill. Multiple calls will result in an error.
3. The GAPFILL operation occurs after the HAVING clause and before the FILL clause.
4. The WHERE clause must include time filters in one of the following forms:
   1. time >= XXX AND time <= XXX
   2. time > XXX AND time < XXX
   3. time BETWEEN XXX AND XXX
5. If additional time filters or conditions are used, an error is raised. Time conditions and other value filters must be connected using the AND operator.
6. If startTime and endTime cannot be inferred from the WHERE clause, an error is raised.

Usage Examples

Example 1: Fill Missing Intervals

SELECT date_bin_gapfill(1h, time) AS hour_time, avg(temperature) AS avg_temp
FROM table1
WHERE (time >= 2024-11-28 07:00:00  AND time <= 2024-11-28 16:00:00)
      AND device_id = '100'
GROUP BY 1;

Result

+-----------------------------+--------+
|                    hour_time|avg_temp|
+-----------------------------+--------+
|2024-11-28T07:00:00.000+08:00|    null|
|2024-11-28T08:00:00.000+08:00|    85.0|
|2024-11-28T09:00:00.000+08:00|    null|
|2024-11-28T10:00:00.000+08:00|    85.0|
|2024-11-28T11:00:00.000+08:00|    88.0|
|2024-11-28T12:00:00.000+08:00|    null|
|2024-11-28T13:00:00.000+08:00|    null|
|2024-11-28T14:00:00.000+08:00|    null|
|2024-11-28T15:00:00.000+08:00|    null|
|2024-11-28T16:00:00.000+08:00|    null|
+-----------------------------+--------+

Example 2: Fill Missing Intervals with Device Grouping

SELECT date_bin_gapfill(1h, time) AS hour_time, device_id, avg(temperature) AS avg_temp
FROM table1
WHERE time >= 2024-11-28 07:00:00  AND time <= 2024-11-28 16:00:00
GROUP BY 1, device_id;

Result

+-----------------------------+---------+--------+
|                    hour_time|device_id|avg_temp|
+-----------------------------+---------+--------+
|2024-11-28T07:00:00.000+08:00|      100|    null|
|2024-11-28T08:00:00.000+08:00|      100|    85.0|
|2024-11-28T09:00:00.000+08:00|      100|    null|
|2024-11-28T10:00:00.000+08:00|      100|    85.0|
|2024-11-28T11:00:00.000+08:00|      100|    88.0|
|2024-11-28T12:00:00.000+08:00|      100|    null|
|2024-11-28T13:00:00.000+08:00|      100|    null|
|2024-11-28T14:00:00.000+08:00|      100|    null|
|2024-11-28T15:00:00.000+08:00|      100|    null|
|2024-11-28T16:00:00.000+08:00|      100|    null|
+-----------------------------+---------+--------+

Example 3: Empty Result Set for No Data in Range

SELECT date_bin_gapfill(1h, time) AS hour_time, device_id, avg(temperature) AS avg_temp
FROM table1
WHERE time >= 2024-11-27 09:00:00  AND time <= 2024-11-27 14:00:00
GROUP BY 1, device_id;

Result

+---------+---------+--------+
|hour_time|device_id|avg_temp|
+---------+---------+--------+
+---------+---------+--------+

1.3 M4 Function

1.3.1 Description

M4 is a built-in polymorphic table function in the table model for downsampling time-series data. For each window, it extracts the first, last, minimum (bottom), and maximum (top) points to reduce the number of returned points while preserving the shape of the trend. M4 takes a table argument and returns a result table, so it must be called in the FROM clause.

• First point: the point with the earliest timestamp and a non-NULL value in the window.
• Last point: the point with the latest timestamp and a non-NULL value in the window.
• Minimum and maximum points: the points with the smallest and largest values in the window. If multiple points have the same value, the first point encountered in the input scan order is retained.
• Both time windows and point-count windows are supported. A duration literal for SIZE, such as 1h or 10m, selects time-window mode; a positive integer, such as 100, selects point-count-window mode.

Supported since V2.0.12.1

1.3.2 Function Definition

SELECT *
FROM M4(
  DATA => input_table PARTITION BY partition_column ORDER BY time_column,
  TIMECOL => 'time_column',
  [ORIGIN => origin_timestamp,]
  SIZE => window_duration | window_point_count,
  [SLIDE => window_duration | window_point_count]
);

DATA is a set-semantic table argument. ORDER BY is required and must contain only the time column specified by TIMECOL, in ascending order. PARTITION BY is optional; if omitted, the entire input table is treated as one partition. Arguments can be passed by name or in declaration order. Named arguments are recommended.

1.3.3 Parameters

Parameter	Type	Required	Description
DATA	Table argument (SET SEMANTIC)	Yes	Input table or subquery. Supports PARTITION BY and ORDER BY.
TIMECOL	String	Yes	Name of the time column. The column must be of type TIMESTAMP, and ORDER BY must contain only this column.
ORIGIN	Timestamp	No	Alignment origin for time windows. Defaults to 0. Not used in point-count-window mode.
SIZE	Duration or INT64	Yes	Duration of a time window or number of points in a point-count window. Must be positive.
SLIDE	Same type as SIZE	No	Window sliding step. Defaults to SIZE and must use the same window mode as SIZE.

Calculation Rules

• The column specified by TIMECOL is excluded from M4 calculations.
• Columns specified by PARTITION BY are excluded from calculations but retained in the output.
• All remaining columns of comparable types participate in M4 calculations.
• After excluding the time and partition columns, analysis fails if no comparable column remains or if any remaining column has a non-comparable type.
• Records with a NULL value in a participating column are excluded from that column's first, last, bottom, and top calculations.
• For each participating column, the first, last, bottom, and top points are calculated, deduplicated, and output in ascending timestamp order.

Returned Results

• Time-window mode always generates window_start and window_end, both of type TIMESTAMP, to represent the interval [window_start, window_end).
• Point-count-window mode always generates window_index, of type INT64. Window indices are calculated independently within each PARTITION BY partition, starting at 0.
• Partition columns retain their original names and types and appear in declaration order. OBJECT columns cannot be partition columns. BLOB partition columns can be retained in the output but do not participate in M4 calculations.
• For each participating column c, two output columns are generated: c_time for the point's timestamp and c for its value. Their types match the corresponding input types. Results for multiple columns are expanded in input-column order.

The number of output rows in a window equals the largest number of feature points among all participating columns. For columns with fewer feature points, the remaining c_time and c cells are filled with NULL.

1.3.4 Usage Examples

The following examples use table1 from Sample Data. Because table1 contains additional columns besides the time and partition columns, a subquery selects only time, device_id, temperature, and humidity for M4 calculations.

Example 1: Time Windows

For device_id = '101', divide the data into 3-minute windows. SIZE => 3m selects time-window mode with a duration of 3 minutes. Each half-open interval [window_start, window_end) extracts the first, last, minimum, and maximum points for temperature and humidity, then outputs the points in ascending timestamp order.

SELECT window_start,
       window_end,
       device_id,
       temperature_time,
       temperature,
       humidity_time,
       humidity
FROM M4(
  DATA => (
    SELECT time, device_id, temperature, humidity
    FROM table1
    WHERE device_id = '101'
      AND time >= 2024-11-27 16:38:00
      AND time <= 2024-11-27 16:44:00
  ) PARTITION BY device_id ORDER BY time,
  TIMECOL => 'time',
  SIZE => 3m
);

Result:

+-----------------------------+-----------------------------+---------+-----------------------------+-----------+-----------------------------+--------+
|                 window_start|                   window_end|device_id|             temperature_time|temperature|                humidity_time|humidity|
+-----------------------------+-----------------------------+---------+-----------------------------+-----------+-----------------------------+--------+
|2024-11-27T16:36:00.000+08:00|2024-11-27T16:39:00.000+08:00|      101|                         null|       null|2024-11-27T16:38:00.000+08:00|    35.1|
|2024-11-27T16:39:00.000+08:00|2024-11-27T16:42:00.000+08:00|      101|2024-11-27T16:39:00.000+08:00|       85.0|2024-11-27T16:39:00.000+08:00|    35.3|
|2024-11-27T16:39:00.000+08:00|2024-11-27T16:42:00.000+08:00|      101|2024-11-27T16:41:00.000+08:00|       85.0|                         null|    null|
|2024-11-27T16:42:00.000+08:00|2024-11-27T16:45:00.000+08:00|      101|                         null|       null|2024-11-27T16:42:00.000+08:00|    35.2|
+-----------------------------+-----------------------------+---------+-----------------------------+-----------+-----------------------------+--------+

Example 2: Point-Count Windows

For device_id = '101', divide the data into windows of 3 points. SIZE => 3 selects point-count-window mode, with 3 input rows per window. window_index identifies each window and starts at 0 within each partition.

SELECT window_index,
       device_id,
       temperature_time,
       temperature,
       humidity_time,
       humidity
FROM M4(
  DATA => (
    SELECT time, device_id, temperature, humidity
    FROM table1
    WHERE device_id = '101'
      AND time >= 2024-11-27 16:38:00
      AND time <= 2024-11-27 16:44:00
  ) PARTITION BY device_id ORDER BY time,
  TIMECOL => 'time',
  SIZE => 3
);

Result:

+------------+---------+-----------------------------+-----------+-----------------------------+--------+
|window_index|device_id|             temperature_time|temperature|                humidity_time|humidity|
+------------+---------+-----------------------------+-----------+-----------------------------+--------+
|           0|      101|2024-11-27T16:39:00.000+08:00|       85.0|2024-11-27T16:38:00.000+08:00|    35.1|
|           0|      101|2024-11-27T16:40:00.000+08:00|       85.0|2024-11-27T16:39:00.000+08:00|    35.3|
|           1|      101|2024-11-27T16:41:00.000+08:00|       85.0|2024-11-27T16:42:00.000+08:00|    35.2|
+------------+---------+-----------------------------+-----------+-----------------------------+--------+

To specify the sliding step, also set SLIDE:

SELECT window_index,
       device_id,
       temperature_time,
       temperature,
       humidity_time,
       humidity
FROM M4(
  DATA => (
    SELECT time, device_id, temperature, humidity
    FROM table1
    WHERE device_id = '101'
      AND time >= 2024-11-27 16:38:00
      AND time <= 2024-11-27 16:44:00
  ) PARTITION BY device_id ORDER BY time,
  TIMECOL => 'time',
  SIZE => 3,
  SLIDE => 2
);

This call uses a window size of 3 points and advances the window by 2 points each time.

Result:

+------------+---------+-----------------------------+-----------+-----------------------------+--------+
|window_index|device_id|             temperature_time|temperature|                humidity_time|humidity|
+------------+---------+-----------------------------+-----------+-----------------------------+--------+
|           0|      101|2024-11-27T16:39:00.000+08:00|       85.0|2024-11-27T16:38:00.000+08:00|    35.1|
|           0|      101|2024-11-27T16:40:00.000+08:00|       85.0|2024-11-27T16:39:00.000+08:00|    35.3|
|           1|      101|2024-11-27T16:40:00.000+08:00|       85.0|2024-11-27T16:42:00.000+08:00|    35.2|
|           1|      101|2024-11-27T16:41:00.000+08:00|       85.0|                         null|    null|
|           2|      101|                         null|       null|2024-11-27T16:42:00.000+08:00|    35.2|
+------------+---------+-----------------------------+-----------+-----------------------------+--------+

Example 3: Invalid Sort Column

M4 requires ORDER BY on the DATA argument, and the sort column must match the time column specified by TIMECOL. The following example incorrectly sorts by temperature:

SELECT *
FROM M4(
  DATA => (
    SELECT time, device_id, temperature, humidity
    FROM table1
    WHERE device_id = '101'
  ) PARTITION BY device_id ORDER BY temperature,
  TIMECOL => 'time',
  SIZE => 3m
);

Error:

Msg: org.apache.iotdb.jdbc.IoTDBSQLException: 701: The ORDER BY clause of the DATA argument must contain exactly the time column specified by the TIMECOL argument.

2. DIFF Function

2.1 Description:

• The DIFF function calculates the difference between the current row and the previous row. For the first row, it returns NULL since there is no previous row.

2.2 Function Definition:

DIFF(numberic[, boolean]) -> Double

2.3 Parameters:

First Parameter (numeric):

• Type: Must be numeric (INT32, INT64, FLOAT, DOUBLE).
• Purpose: Specifies the column for which to calculate the difference.

Second Parameter (boolean, optional):

• Type: Boolean (true or false).
• Default: true.
• Purpose:
  • true: Ignores NULL values and uses the first non-NULL value for calculation. If no non-NULL value exists, returns NULL.
  • false: Does not ignore NULL values. If the previous row is NULL, the result is NULL.

2.4 Notes:

• In tree models, the second parameter must be specified as 'ignoreNull'='true' or 'ignoreNull'='false'.
• In table models, simply use true or false. Using 'ignoreNull'='true' or 'ignoreNull'='false' in table models results in a string comparison and always evaluates to false.

2.5 Usage Examples

Example 1: Ignore NULL Values

SELECT time, DIFF(temperature) AS diff_temp
FROM table1
WHERE device_id = '100';

Result

+-----------------------------+---------+
|                         time|diff_temp|
+-----------------------------+---------+
|2024-11-29T11:00:00.000+08:00|     null|
|2024-11-29T18:30:00.000+08:00|     null|
|2024-11-28T08:00:00.000+08:00|     -5.0|
|2024-11-28T09:00:00.000+08:00|     null|
|2024-11-28T10:00:00.000+08:00|      0.0|
|2024-11-28T11:00:00.000+08:00|      3.0|
|2024-11-26T13:37:00.000+08:00|      2.0|
|2024-11-26T13:38:00.000+08:00|      0.0|
+-----------------------------+---------+

Example 2: Do Not Ignore NULL Values

SELECT time, DIFF(temperature, false) AS diff_temp
FROM table1
WHERE device_id = '100';

Result

+-----------------------------+---------+
|                         time|diff_temp|
+-----------------------------+---------+
|2024-11-29T11:00:00.000+08:00|     null|
|2024-11-29T18:30:00.000+08:00|     null|
|2024-11-28T08:00:00.000+08:00|     -5.0|
|2024-11-28T09:00:00.000+08:00|     null|
|2024-11-28T10:00:00.000+08:00|     null|
|2024-11-28T11:00:00.000+08:00|      3.0|
|2024-11-26T13:37:00.000+08:00|      2.0|
|2024-11-26T13:38:00.000+08:00|      0.0|
+-----------------------------+---------+

Example 3: Full Example

SELECT time, temperature,
       DIFF(temperature) AS diff_temp_1,
       DIFF(temperature, false) AS diff_temp_2
FROM table1
WHERE device_id = '100';

Result

+-----------------------------+-----------+-----------+-----------+
|                         time|temperature|diff_temp_1|diff_temp_2|
+-----------------------------+-----------+-----------+-----------+
|2024-11-29T11:00:00.000+08:00|       null|       null|       null|
|2024-11-29T18:30:00.000+08:00|       90.0|       null|       null|
|2024-11-28T08:00:00.000+08:00|       85.0|       -5.0|       -5.0|
|2024-11-28T09:00:00.000+08:00|       null|       null|       null|
|2024-11-28T10:00:00.000+08:00|       85.0|        0.0|       null|
|2024-11-28T11:00:00.000+08:00|       88.0|        3.0|        3.0|
|2024-11-26T13:37:00.000+08:00|       90.0|        2.0|        2.0|
|2024-11-26T13:38:00.000+08:00|       90.0|        0.0|        0.0|
+-----------------------------+-----------+-----------+-----------+

3 Timeseries Windowing Functions

The sample data is as follows:

IoTDB> SELECT * FROM bid;
+-----------------------------+--------+-----+
|                         time|stock_id|price|
+-----------------------------+--------+-----+
|2021-01-01T09:05:00.000+08:00|    AAPL|100.0|
|2021-01-01T09:06:00.000+08:00|    TESL|200.0|
|2021-01-01T09:07:00.000+08:00|    AAPL|103.0|
|2021-01-01T09:07:00.000+08:00|    TESL|202.0|
|2021-01-01T09:09:00.000+08:00|    AAPL|102.0|
|2021-01-01T09:15:00.000+08:00|    TESL|195.0|
+-----------------------------+--------+-----+

-- Create table statement
CREATE TABLE bid(time TIMESTAMP TIME, stock_id STRING TAG, price FLOAT FIELD);
-- Insert data
INSERT INTO bid(time, stock_id, price) VALUES('2021-01-01T09:05:00','AAPL',100.0),('2021-01-01T09:06:00','TESL',200.0),('2021-01-01T09:07:00','AAPL',103.0),('2021-01-01T09:07:00','TESL',202.0),('2021-01-01T09:09:00','AAPL',102.0),('2021-01-01T09:15:00','TESL',195.0);

3.1 HOP

Function Description

The HOP function segments data into overlapping time windows for analysis, assigning each row to all windows that overlap with its timestamp. If windows overlap (when SLIDE < SIZE), data will be duplicated across multiple windows.

Function Definition

HOP(data, timecol, size, slide[, origin])

Parameter Description

Parameter	Type	Attributes	Description
DATA	Table	ROW SEMANTIC, PASS THROUGH	Input table
TIMECOL	Scalar	String (default: 'time')	Time column
SIZE	Scalar	Long integer	Window size
SLIDE	Scalar	Long integer	Sliding step
ORIGIN	Scalar	Timestamp (default: Unix epoch)	First window start time

Returned Results

The HOP function returns:

• window_start: Window start time (inclusive)
• window_end: Window end time (exclusive)
• Pass-through columns: All input columns from DATA

Usage Example

IoTDB> SELECT * FROM HOP(DATA => bid,TIMECOL => 'time',SLIDE => 5m,SIZE => 10m);
+-----------------------------+-----------------------------+-----------------------------+--------+-----+
|                 window_start|                   window_end|                         time|stock_id|price|
+-----------------------------+-----------------------------+-----------------------------+--------+-----+
|2021-01-01T09:00:00.000+08:00|2021-01-01T09:10:00.000+08:00|2021-01-01T09:05:00.000+08:00|    AAPL|100.0|
|2021-01-01T09:05:00.000+08:00|2021-01-01T09:15:00.000+08:00|2021-01-01T09:05:00.000+08:00|    AAPL|100.0|
|2021-01-01T09:00:00.000+08:00|2021-01-01T09:10:00.000+08:00|2021-01-01T09:06:00.000+08:00|    TESL|200.0|
|2021-01-01T09:05:00.000+08:00|2021-01-01T09:15:00.000+08:00|2021-01-01T09:06:00.000+08:00|    TESL|200.0|
|2021-01-01T09:00:00.000+08:00|2021-01-01T09:10:00.000+08:00|2021-01-01T09:07:00.000+08:00|    AAPL|103.0|
|2021-01-01T09:00:00.000+08:00|2021-01-01T09:10:00.000+08:00|2021-01-01T09:07:00.000+08:00|    TESL|202.0|
|2021-01-01T09:05:00.000+08:00|2021-01-01T09:15:00.000+08:00|2021-01-01T09:07:00.000+08:00|    AAPL|103.0|
|2021-01-01T09:05:00.000+08:00|2021-01-01T09:15:00.000+08:00|2021-01-01T09:07:00.000+08:00|    TESL|202.0|
|2021-01-01T09:00:00.000+08:00|2021-01-01T09:10:00.000+08:00|2021-01-01T09:09:00.000+08:00|    AAPL|102.0|
|2021-01-01T09:05:00.000+08:00|2021-01-01T09:15:00.000+08:00|2021-01-01T09:09:00.000+08:00|    AAPL|102.0|
|2021-01-01T09:10:00.000+08:00|2021-01-01T09:20:00.000+08:00|2021-01-01T09:15:00.000+08:00|    TESL|195.0|
|2021-01-01T09:15:00.000+08:00|2021-01-01T09:25:00.000+08:00|2021-01-01T09:15:00.000+08:00|    TESL|195.0|
+-----------------------------+-----------------------------+-----------------------------+--------+-----+

-- Equivalent to tree model's GROUP BY TIME when combined with GROUP BY
IoTDB> SELECT window_start, window_end, stock_id, avg(price) as avg FROM HOP(DATA => bid,TIMECOL => 'time',SLIDE => 5m,SIZE => 10m) GROUP BY window_start, window_end, stock_id;
+-----------------------------+-----------------------------+--------+------------------+
|                 window_start|                   window_end|stock_id|               avg|
+-----------------------------+-----------------------------+--------+------------------+
|2021-01-01T09:00:00.000+08:00|2021-01-01T09:10:00.000+08:00|    TESL|             201.0|
|2021-01-01T09:05:00.000+08:00|2021-01-01T09:15:00.000+08:00|    TESL|             201.0|
|2021-01-01T09:10:00.000+08:00|2021-01-01T09:20:00.000+08:00|    TESL|             195.0|
|2021-01-01T09:15:00.000+08:00|2021-01-01T09:25:00.000+08:00|    TESL|             195.0|
|2021-01-01T09:00:00.000+08:00|2021-01-01T09:10:00.000+08:00|    AAPL|101.66666666666667|
|2021-01-01T09:05:00.000+08:00|2021-01-01T09:15:00.000+08:00|    AAPL|101.66666666666667|
+-----------------------------+-----------------------------+--------+------------------+

3.2 SESSION

Function Description

The SESSION function groups data into sessions based on time intervals. It checks the time gap between consecutive rows—rows with gaps smaller than the threshold (GAP) are grouped into the current window, while larger gaps trigger a new window.

Function Definition

SESSION(data [PARTITION BY(pkeys, ...)] [ORDER BY(okeys, ...)], timecol, gap)

Parameter Description

Parameter	Type	Attributes	Description
DATA	Table	SET SEMANTIC, PASS THROUGH	Input table with partition/sort keys
TIMECOL	Scalar	String (default: 'time')	Time column name
GAP	Scalar	Long integer	Session gap threshold

Returned Results

The SESSION function returns:

• window_start: Time of the first row in the session
• window_end: Time of the last row in the session
• Pass-through columns: All input columns from DATA

Usage Example

IoTDB> SELECT * FROM SESSION(DATA => bid PARTITION BY stock_id ORDER BY time,TIMECOL => 'time',GAP => 2m);
+-----------------------------+-----------------------------+-----------------------------+--------+-----+
|                 window_start|                   window_end|                         time|stock_id|price|
+-----------------------------+-----------------------------+-----------------------------+--------+-----+
|2021-01-01T09:06:00.000+08:00|2021-01-01T09:07:00.000+08:00|2021-01-01T09:06:00.000+08:00|    TESL|200.0|
|2021-01-01T09:06:00.000+08:00|2021-01-01T09:07:00.000+08:00|2021-01-01T09:07:00.000+08:00|    TESL|202.0|
|2021-01-01T09:15:00.000+08:00|2021-01-01T09:15:00.000+08:00|2021-01-01T09:15:00.000+08:00|    TESL|195.0|
|2021-01-01T09:05:00.000+08:00|2021-01-01T09:09:00.000+08:00|2021-01-01T09:05:00.000+08:00|    AAPL|100.0|
|2021-01-01T09:05:00.000+08:00|2021-01-01T09:09:00.000+08:00|2021-01-01T09:07:00.000+08:00|    AAPL|103.0|
|2021-01-01T09:05:00.000+08:00|2021-01-01T09:09:00.000+08:00|2021-01-01T09:09:00.000+08:00|    AAPL|102.0|
+-----------------------------+-----------------------------+-----------------------------+--------+-----+

-- Equivalent to tree model's GROUP BY SESSION when combined with GROUP BY
IoTDB> SELECT window_start, window_end, stock_id, avg(price) as avg FROM SESSION(DATA => bid PARTITION BY stock_id ORDER BY time,TIMECOL => 'time',GAP => 2m) GROUP BY window_start, window_end, stock_id;
+-----------------------------+-----------------------------+--------+------------------+
|                 window_start|                   window_end|stock_id|               avg|
+-----------------------------+-----------------------------+--------+------------------+
|2021-01-01T09:06:00.000+08:00|2021-01-01T09:07:00.000+08:00|    TESL|             201.0|
|2021-01-01T09:15:00.000+08:00|2021-01-01T09:15:00.000+08:00|    TESL|             195.0|
|2021-01-01T09:05:00.000+08:00|2021-01-01T09:09:00.000+08:00|    AAPL|101.66666666666667|
+-----------------------------+-----------------------------+--------+------------------+

3.3 VARIATION

Function Description

The VARIATION function groups data based on value differences. The first row becomes the baseline for the first window. Subsequent rows are compared to the baseline—if the difference is within the threshold (DELTA), they join the current window; otherwise, a new window starts with that row as the new baseline.

Function Definition

VARIATION(data [PARTITION BY(pkeys, ...)] [ORDER BY(okeys, ...)], col, delta)

Parameter Description

Parameter	Type	Attributes	Description
DATA	Table	SET SEMANTIC, PASS THROUGH	Input table with partition/sort keys
COL	Scalar	String	Column for difference calculation
DELTA	Scalar	Float	Difference threshold

Returned Results

The VARIATION function returns:

• window_index: Window identifier
• Pass-through columns: All input columns from DATA

Usage Example

IoTDB> SELECT * FROM VARIATION(DATA => bid PARTITION BY stock_id ORDER BY time,COL => 'price',DELTA => 2.0);
+------------+-----------------------------+--------+-----+
|window_index|                         time|stock_id|price|
+------------+-----------------------------+--------+-----+
|           0|2021-01-01T09:06:00.000+08:00|    TESL|200.0|
|           0|2021-01-01T09:07:00.000+08:00|    TESL|202.0|
|           1|2021-01-01T09:15:00.000+08:00|    TESL|195.0|
|           0|2021-01-01T09:05:00.000+08:00|    AAPL|100.0|
|           1|2021-01-01T09:07:00.000+08:00|    AAPL|103.0|
|           1|2021-01-01T09:09:00.000+08:00|    AAPL|102.0|
+------------+-----------------------------+--------+-----+

-- Equivalent to tree model's GROUP BY VARIATION when combined with GROUP BY
IoTDB> SELECT first(time) as window_start, last(time) as window_end, stock_id, avg(price) as avg FROM VARIATION(DATA => bid PARTITION BY stock_id ORDER BY time,COL => 'price', DELTA => 2.0) GROUP BY window_index, stock_id;
+-----------------------------+-----------------------------+--------+-----+
|                 window_start|                   window_end|stock_id|  avg|
+-----------------------------+-----------------------------+--------+-----+
|2021-01-01T09:06:00.000+08:00|2021-01-01T09:07:00.000+08:00|    TESL|201.0|
|2021-01-01T09:15:00.000+08:00|2021-01-01T09:15:00.000+08:00|    TESL|195.0|
|2021-01-01T09:05:00.000+08:00|2021-01-01T09:05:00.000+08:00|    AAPL|100.0|
|2021-01-01T09:07:00.000+08:00|2021-01-01T09:09:00.000+08:00|    AAPL|102.5|
+-----------------------------+-----------------------------+--------+-----+

3.4 CAPACITY

Function Description

CAPACITY divides data into windows by point count (row count), with at most SIZE rows per window. Since V2.0.12.1, the optional SLIDE argument specifies the number of rows between the start positions of adjacent windows.

Function Definition

CAPACITY(
  DATA => <table_or_query>
    [PARTITION BY <partition_expression> [, ...]]
    [ORDER BY <sort_item> [, ...]],
  SIZE => <positive_int64>
  [, SLIDE => <positive_int64>]
)

Parameter Description

Parameter	Type	Required	Description
DATA	Table	Yes	Input table or subquery. Supports PARTITION BY and ORDER BY and passes through input columns.
SIZE	INT64 scalar	Yes	Window capacity. Must be positive and specifies the maximum number of rows in a window.
SLIDE	INT64 scalar	No	Window sliding step. Must be positive when specified. Defaults to SIZE when omitted.

• With PARTITION BY, row numbers and window indices are calculated independently within each partition, starting at 0.
• With ORDER BY, row numbers follow the specified sort order.
• Window indices start at 0. Window k covers the row-number interval [k * SLIDE, k * SLIDE + SIZE).
• Window behavior depends on the relationship between SLIDE and SIZE:

Relationship	Window Type	Behavior
SLIDE < SIZE	Overlapping windows	Adjacent windows overlap. An input row can belong to multiple windows and appear multiple times with different window_index values.
SLIDE = SIZE	Non-overlapping windows	Adjacent windows are contiguous. This matches the behavior of CAPACITY(DATA => ..., SIZE => n) in earlier versions.
SLIDE > SIZE	Gapped windows	Gaps exist between adjacent windows. Input rows that fall into a gap are omitted from the output.

Returned Results

CAPACITY returns the following columns:

• window_index: window index of type INT64, starting at 0.
• Columns passed through from DATA, with their original names and types.

You can query the result directly or aggregate it by window_index and business grouping columns.

Usage Example

IoTDB> SELECT * FROM CAPACITY(DATA => bid PARTITION BY stock_id ORDER BY time, SIZE => 2);
+------------+-----------------------------+--------+-----+
|window_index|                         time|stock_id|price|
+------------+-----------------------------+--------+-----+
|           0|2021-01-01T09:06:00.000+08:00|    TESL|200.0|
|           0|2021-01-01T09:07:00.000+08:00|    TESL|202.0|
|           1|2021-01-01T09:15:00.000+08:00|    TESL|195.0|
|           0|2021-01-01T09:05:00.000+08:00|    AAPL|100.0|
|           0|2021-01-01T09:07:00.000+08:00|    AAPL|103.0|
|           1|2021-01-01T09:09:00.000+08:00|    AAPL|102.0|
+------------+-----------------------------+--------+-----+

-- Combine with GROUP BY, equivalent to GROUP BY COUNT in the tree model
IoTDB> SELECT first(time) as start_time, last(time) as end_time, stock_id, avg(price) as avg FROM CAPACITY(DATA => bid PARTITION BY stock_id ORDER BY time, SIZE => 2) GROUP BY window_index, stock_id;
+-----------------------------+-----------------------------+--------+-----+
|                   start_time|                     end_time|stock_id|  avg|
+-----------------------------+-----------------------------+--------+-----+
|2021-01-01T09:06:00.000+08:00|2021-01-01T09:07:00.000+08:00|    TESL|201.0|
|2021-01-01T09:15:00.000+08:00|2021-01-01T09:15:00.000+08:00|    TESL|195.0|
|2021-01-01T09:05:00.000+08:00|2021-01-01T09:07:00.000+08:00|    AAPL|101.5|
|2021-01-01T09:09:00.000+08:00|2021-01-01T09:09:00.000+08:00|    AAPL|102.0|
+-----------------------------+-----------------------------+--------+-----+

-- Use SLIDE to generate overlapping windows (SLIDE < SIZE)
TimechoDB> SELECT * FROM CAPACITY(DATA => bid PARTITION BY stock_id ORDER BY time, SIZE => 2, SLIDE => 1);
+------------+-----------------------------+--------+-----+
|window_index|                         time|stock_id|price|
+------------+-----------------------------+--------+-----+
|           0|2021-01-01T09:05:00.000+08:00|    AAPL|100.0|
|           0|2021-01-01T09:07:00.000+08:00|    AAPL|103.0|
|           1|2021-01-01T09:07:00.000+08:00|    AAPL|103.0|
|           1|2021-01-01T09:09:00.000+08:00|    AAPL|102.0|
|           2|2021-01-01T09:09:00.000+08:00|    AAPL|102.0|
|           0|2021-01-01T09:06:00.000+08:00|    TESL|200.0|
|           0|2021-01-01T09:07:00.000+08:00|    TESL|202.0|
|           1|2021-01-01T09:07:00.000+08:00|    TESL|202.0|
|           1|2021-01-01T09:15:00.000+08:00|    TESL|195.0|
|           2|2021-01-01T09:15:00.000+08:00|    TESL|195.0|
+------------+-----------------------------+--------+-----+

3.5 TUMBLE

Function Description

The TUMBLE function assigns each row to a non-overlapping, fixed-size time window based on a timestamp attribute.

Function Definition

TUMBLE(data, timecol, size[, origin])

Parameter Description

Parameter	Type	Attributes	Description
DATA	Table	ROW SEMANTIC, PASS THROUGH	Input table
TIMECOL	Scalar	String (default: 'time')	Time column
SIZE	Scalar	Long integer (positive)	Window size
ORIGIN	Scalar	Timestamp (default: Unix epoch)	First window start time

Returned Results

The TUMBLE function returns:

• window_start: Window start time (inclusive)
• window_end: Window end time (exclusive)
• Pass-through columns: All input columns from DATA

Usage Example

IoTDB> SELECT * FROM TUMBLE( DATA => bid, TIMECOL => 'time', SIZE => 10m);
+-----------------------------+-----------------------------+-----------------------------+--------+-----+
|                 window_start|                   window_end|                         time|stock_id|price|
+-----------------------------+-----------------------------+-----------------------------+--------+-----+
|2021-01-01T09:00:00.000+08:00|2021-01-01T09:10:00.000+08:00|2021-01-01T09:06:00.000+08:00|    TESL|200.0|
|2021-01-01T09:00:00.000+08:00|2021-01-01T09:10:00.000+08:00|2021-01-01T09:07:00.000+08:00|    TESL|202.0|
|2021-01-01T09:10:00.000+08:00|2021-01-01T09:20:00.000+08:00|2021-01-01T09:15:00.000+08:00|    TESL|195.0|
|2021-01-01T09:00:00.000+08:00|2021-01-01T09:10:00.000+08:00|2021-01-01T09:05:00.000+08:00|    AAPL|100.0|
|2021-01-01T09:00:00.000+08:00|2021-01-01T09:10:00.000+08:00|2021-01-01T09:07:00.000+08:00|    AAPL|103.0|
|2021-01-01T09:00:00.000+08:00|2021-01-01T09:10:00.000+08:00|2021-01-01T09:09:00.000+08:00|    AAPL|102.0|
+-----------------------------+-----------------------------+-----------------------------+--------+-----+

-- Equivalent to tree model's GROUP BY TIME when combined with GROUP BY
IoTDB> SELECT window_start, window_end, stock_id, avg(price) as avg FROM TUMBLE(DATA => bid, TIMECOL => 'time', SIZE => 10m) GROUP BY window_start, window_end, stock_id;
+-----------------------------+-----------------------------+--------+------------------+
|                 window_start|                   window_end|stock_id|               avg|
+-----------------------------+-----------------------------+--------+------------------+
|2021-01-01T09:00:00.000+08:00|2021-01-01T09:10:00.000+08:00|    TESL|             201.0|
|2021-01-01T09:10:00.000+08:00|2021-01-01T09:20:00.000+08:00|    TESL|             195.0|
|2021-01-01T09:00:00.000+08:00|2021-01-01T09:10:00.000+08:00|    AAPL|101.66666666666667|
+-----------------------------+-----------------------------+--------+------------------+

3.6 CUMULATE

Function Description

The CUMULATE function creates expanding windows from an initial window, maintaining the same start time while incrementally extending the end time by STEP until reaching SIZE. Each window contains all elements within its range. For example, with a 1-hour STEP and 24-hour SIZE, daily windows would be: [00:00, 01:00), [00:00, 02:00), ..., [00:00, 24:00).

Function Definition

CUMULATE(data, timecol, size, step[, origin])

Parameter Description

Parameter	Type	Attributes	Description
DATA	Table	ROW SEMANTIC, PASS THROUGH	Input table
TIMECOL	Scalar	String (default: 'time')	Time column
SIZE	Scalar	Long integer (positive)	Window size (must be an integer multiple of STEP)
STEP	Scalar	Long integer (positive)	Expansion step
ORIGIN	Scalar	Timestamp (default: Unix epoch)	First window start time

Note: An error Cumulative table function requires size must be an integral multiple of step occurs if SIZE is not divisible by STEP.

Returned Results

The CUMULATE function returns:

• window_start: Window start time (inclusive)
• window_end: Window end time (exclusive)
• Pass-through columns: All input columns from DATA

Usage Example

IoTDB> SELECT * FROM CUMULATE(DATA => bid,TIMECOL => 'time',STEP => 2m,SIZE => 10m);
+-----------------------------+-----------------------------+-----------------------------+--------+-----+
|                 window_start|                   window_end|                         time|stock_id|price|
+-----------------------------+-----------------------------+-----------------------------+--------+-----+
|2021-01-01T09:00:00.000+08:00|2021-01-01T09:08:00.000+08:00|2021-01-01T09:06:00.000+08:00|    TESL|200.0|
|2021-01-01T09:00:00.000+08:00|2021-01-01T09:10:00.000+08:00|2021-01-01T09:06:00.000+08:00|    TESL|200.0|
|2021-01-01T09:00:00.000+08:00|2021-01-01T09:08:00.000+08:00|2021-01-01T09:07:00.000+08:00|    TESL|202.0|
|2021-01-01T09:00:00.000+08:00|2021-01-01T09:10:00.000+08:00|2021-01-01T09:07:00.000+08:00|    TESL|202.0|
|2021-01-01T09:10:00.000+08:00|2021-01-01T09:16:00.000+08:00|2021-01-01T09:15:00.000+08:00|    TESL|195.0|
|2021-01-01T09:10:00.000+08:00|2021-01-01T09:18:00.000+08:00|2021-01-01T09:15:00.000+08:00|    TESL|195.0|
|2021-01-01T09:10:00.000+08:00|2021-01-01T09:20:00.000+08:00|2021-01-01T09:15:00.000+08:00|    TESL|195.0|
|2021-01-01T09:00:00.000+08:00|2021-01-01T09:06:00.000+08:00|2021-01-01T09:05:00.000+08:00|    AAPL|100.0|
|2021-01-01T09:00:00.000+08:00|2021-01-01T09:08:00.000+08:00|2021-01-01T09:05:00.000+08:00|    AAPL|100.0|
|2021-01-01T09:00:00.000+08:00|2021-01-01T09:10:00.000+08:00|2021-01-01T09:05:00.000+08:00|    AAPL|100.0|
|2021-01-01T09:00:00.000+08:00|2021-01-01T09:08:00.000+08:00|2021-01-01T09:07:00.000+08:00|    AAPL|103.0|
|2021-01-01T09:00:00.000+08:00|2021-01-01T09:10:00.000+08:00|2021-01-01T09:07:00.000+08:00|    AAPL|103.0|
|2021-01-01T09:00:00.000+08:00|2021-01-01T09:10:00.000+08:00|2021-01-01T09:09:00.000+08:00|    AAPL|102.0|
+-----------------------------+-----------------------------+-----------------------------+--------+-----+

-- Equivalent to tree model's GROUP BY TIME when combined with GROUP BY
IoTDB> SELECT window_start, window_end, stock_id, avg(price) as avg FROM CUMULATE(DATA => bid,TIMECOL => 'time',STEP => 2m, SIZE => 10m) GROUP BY window_start, window_end, stock_id;
+-----------------------------+-----------------------------+--------+------------------+
|                 window_start|                   window_end|stock_id|               avg|
+-----------------------------+-----------------------------+--------+------------------+
|2021-01-01T09:00:00.000+08:00|2021-01-01T09:08:00.000+08:00|    TESL|             201.0|
|2021-01-01T09:00:00.000+08:00|2021-01-01T09:10:00.000+08:00|    TESL|             201.0|
|2021-01-01T09:10:00.000+08:00|2021-01-01T09:16:00.000+08:00|    TESL|             195.0|
|2021-01-01T09:10:00.000+08:00|2021-01-01T09:18:00.000+08:00|    TESL|             195.0|
|2021-01-01T09:10:00.000+08:00|2021-01-01T09:20:00.000+08:00|    TESL|             195.0|
|2021-01-01T09:00:00.000+08:00|2021-01-01T09:06:00.000+08:00|    AAPL|             100.0|
|2021-01-01T09:00:00.000+08:00|2021-01-01T09:08:00.000+08:00|    AAPL|             101.5|
|2021-01-01T09:00:00.000+08:00|2021-01-01T09:10:00.000+08:00|    AAPL|101.66666666666667|
+-----------------------------+-----------------------------+--------+------------------+

4. Window Functions

4.1 SQL Definition

windowDefinition
    : name=identifier AS '(' windowSpecification ')'
    ;

windowSpecification
    : (existingWindowName=identifier)?
      (PARTITION BY partition+=expression (',' partition+=expression)*)?
      (ORDER BY sortItem (',' sortItem)*)?
      windowFrame?
    ;

windowFrame
    : frameExtent
    ;

frameExtent
    : frameType=RANGE start=frameBound
    | frameType=ROWS start=frameBound
    | frameType=GROUPS start=frameBound
    | frameType=RANGE BETWEEN start=frameBound AND end=frameBound
    | frameType=ROWS BETWEEN start=frameBound AND end=frameBound
    | frameType=GROUPS BETWEEN start=frameBound AND end=frameBound
    ;

frameBound
    : UNBOUNDED boundType=PRECEDING                 #unboundedFrame
    | UNBOUNDED boundType=FOLLOWING                 #unboundedFrame
    | CURRENT ROW                                   #currentRowBound
    | expression boundType=(PRECEDING | FOLLOWING)  #boundedFrame
    ;

For more detailed introductions to the features, please refer to: Window Function

4.2 Usage Examples

The original data of the device_flow table is as follows:

+-----------------------------+------+-----+
|                         time|device| flow|
+-----------------------------+------+-----+
|1970-01-01T08:00:00.000+08:00|    d0|    3|
|1970-01-01T08:00:00.001+08:00|    d0|    5|
|1970-01-01T08:00:00.002+08:00|    d0|    3|
|1970-01-01T08:00:00.003+08:00|    d0|    1|
|1970-01-01T08:00:00.004+08:00|    d1|    2|
|1970-01-01T08:00:00.005+08:00|    d1|    4|
+-----------------------------+------+-----+

1. Query all columns from device_flow, group the data by the device dimension, sort the records within each device group by the value of the flow field, calculate the cumulative sum of the flow field, and finally return the cumulative sum as a column named sum.

SQL:

IoTDB> SELECT *, sum(flow) OVER (PARTITION BY device ORDER BY flow) as sum FROM device_flow;

Result:

+-----------------------------+------+----+----+
|                         time|device|flow| sum|
+-----------------------------+------+----+----+
|1970-01-01T08:00:04.000+08:00|    d1|   2| 2.0|
|1970-01-01T08:00:05.000+08:00|    d1|   4| 6.0|
|1970-01-01T08:00:03.000+08:00|    d0|   1| 1.0|
|1970-01-01T08:00:00.000+08:00|    d0|   3| 7.0|
|1970-01-01T08:00:02.000+08:00|    d0|   3| 7.0|
|1970-01-01T08:00:01.000+08:00|    d0|   5|12.0|
+-----------------------------+------+----+----+

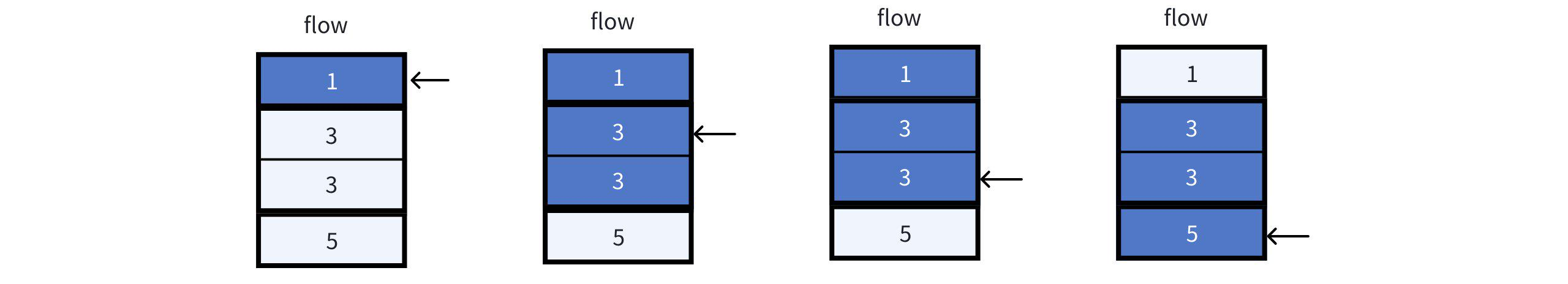

2. Query all original columns from the device_flow table, group the data by the device dimension (device), sort the records within each device group by the value of the flow field, count the number of rows within the range of "the flow group of the current row + the previous 1 flow group", and finally return the count result as a column named count.

SQL:

IoTDB> SELECT *, count(flow) OVER(PARTITION BY device ORDER BY flow GROUPS BETWEEN 1 PRECEDING AND CURRENT ROW) as count FROM device_flow;

Result:

+-----------------------------+------+----+-----+
|                         time|device|flow|count|
+-----------------------------+------+----+-----+
|1970-01-01T08:00:04.000+08:00|    d1|   2|    1|
|1970-01-01T08:00:05.000+08:00|    d1|   4|    2|
|1970-01-01T08:00:03.000+08:00|    d0|   1|    1|
|1970-01-01T08:00:00.000+08:00|    d0|   3|    3|
|1970-01-01T08:00:02.000+08:00|    d0|   3|    3|
|1970-01-01T08:00:01.000+08:00|    d0|   5|    3|
+-----------------------------+------+----+-----+

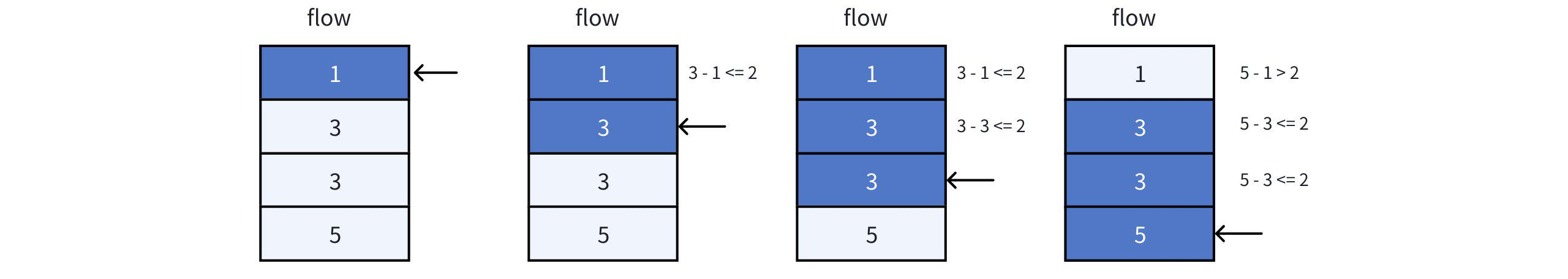

3. Query all original columns from the device_flow table, group the data by device, sort the records in ascending order by the value of the flow field within each group, count the number of all rows falling within the numeric range of "the flow value of the current row minus 2" to "the flow value of the current row", and finally return the count result as a column named count.

SQL:

IoTDB> SELECT *,count(flow) OVER(PARTITION BY device ORDER BY flow RANGE BETWEEN 2 PRECEDING AND CURRENT ROW) as count FROM device_flow;

Result:

+-----------------------------+------+----+-----+
|                         time|device|flow|count|
+-----------------------------+------+----+-----+
|1970-01-01T08:00:04.000+08:00|    d1|   2|    1|
|1970-01-01T08:00:05.000+08:00|    d1|   4|    2|
|1970-01-01T08:00:03.000+08:00|    d0|   1|    1|
|1970-01-01T08:00:00.000+08:00|    d0|   3|    3|
|1970-01-01T08:00:02.000+08:00|    d0|   3|    3|
|1970-01-01T08:00:01.000+08:00|    d0|   5|    3|
+-----------------------------+------+----+-----+

5. Object Type Read Function

Description:
Reads binary content from an OBJECT type column and returns a BLOB type (raw binary data of the object).

Supported since V2.0.8

Syntax:

READ_OBJECT(object [, offset, length])

Parameters:

• Required:
  object (OBJECT type)
• Optional:
  • offset (long/INT64): Start position for reading. Default: 0.
    • Throws error if offset < 0 or offset >= full file length.
  • length (long/INT64): Number of bytes to read. Default: full file length.
    • Error if length > 2^31 - 1.
    • If length exceeds remaining bytes from offset, reads until end of file.
    • If length < 0, reads all remaining data from offset.

Examples:

IoTDB:database1> SELECT READ_OBJECT(s1) FROM table1 WHERE device_id = 'tag1'
+------------+
|       _col0|
+------------+
|0x696f746462|
+------------+
Total line number = 1

IoTDB:database1> SELECT READ_OBJECT(s1, 0, 3) FROM table1 WHERE device_id = 'tag1'
+--------+
|   _col0|
+--------+
|0x696f74|
+--------+
Total line number = 1

6. read_tsfile Table Function

6.1 Description

read_tsfile reads table-model data from external TsFile files or directories and returns a temporary table source. You can use SELECT, WHERE, ORDER BY, LIMIT, OFFSET, and aggregation as you would with an ordinary table for read-only analysis and temporary processing. Results are not written back to the external TsFiles, and internal IoTDB data is not modified. This function does not support writing, deleting, modifying, or registering external TsFiles.

Supported since V2.0.12.1

6.2 Function Definition

SELECT *
FROM TABLE(
  read_tsfile(
    TABLE_NAME => '<table_name>',
    PATHS => '<tsfile_or_directory_path>'
  )
);

6.3 Parameters

Parameter	Required	Description
PATHS	Yes	Path to a TsFile or directory. Pass a single path as a string. For multiple paths, separate them with commas within the same string, for example '/data/a.tsfile,/data/b.tsfile,/data/history'. - For a file path, the system attempts to open the file directly. - For a directory, the system recursively scans files with the .tsfile suffix and identifies valid TsFiles by the magic numbers at the beginning and end of each file. Files that are unrecognized, incomplete, not in TsFile format, or not TsFile V4 are excluded from the query. Paths must be visible to the DataNode process executing the query, and that process must have read permission. Specifying any DataNode data directory causes the query to fail.
TABLE_NAME	No	Name of the table to read. When specified, only valid files containing the target table's schema are read. If none of the valid files contains that schema, the query fails. You can omit this argument when the table name can be inferred uniquely: every valid file to be read must contain exactly one table, and the inferred table name must be the same in all files. The query fails if a valid file contains multiple tables or if the unique table names differ between valid files.
DEVICE_METADATA_INFO_SWAP_THRESHOLD	No	When both the number of files and the number of devices are large, some metadata may be written to temporary swap files to limit memory use. This Long value sets the size threshold that forces a swap. The default is 8 MB.

Schema Merging Rules

When reading multiple TsFiles, the system determines the target table and merges its schemas. The merged schema is used only as the output schema for the current query and is not registered in database metadata. The rules are:

• TAG columns are merged in order and must have consistent prefixes. Different TAG names at the same position cause an error; additional TAG columns may be appended at later positions.
• The time-column name must be consistent across files; conflicting names cause an error.
• FIELD column order does not matter. Files can contain different FIELD columns, which are merged incrementally. FIELD columns with the same name must have compatible data types; otherwise, an error is reported.
• Columns with the same name in different TsFiles must have the same column category; otherwise, an error is reported.

Returned Results

• Returns the data of the specified table.
• Output columns come from the merged schema of the target table in the external TsFiles.
• The time column uses the time-column name recorded in the TsFiles.
• TAG columns represent device identifiers.
• FIELD columns contain measurement data.

6.4 Usage Examples

Assume /data/backup/1.tsfile exists and contains the metadata and data of table1 from Sample Data.

Example 1: Infer the Table Name

This example requires /data/backup/1.tsfile to contain exactly one table.

SELECT *
FROM TABLE(
  read_tsfile(
    PATHS => '/data/backup/1.tsfile'
  )
)
LIMIT 10;

Result:

+-----------------------------+------+--------+---------+--------+-----------+-----------+--------+------+-----------------------------+
|                         time|region|plant_id|device_id|model_id|maintenance|temperature|humidity|status|                 arrival_time|
+-----------------------------+------+--------+---------+--------+-----------+-----------+--------+------+-----------------------------+
|2024-11-29T10:00:00.000+08:00|  上海|    3001|      101|       D|        360|       85.0|    null|  null|2024-11-29T10:00:13.000+08:00|
|2024-11-29T11:00:00.000+08:00|  上海|    3002|      100|       E|        180|       null|    45.1|  true|                         null|
|2024-11-29T18:30:00.000+08:00|  上海|    3002|      100|       E|        180|       90.0|    35.4|  true|2024-11-29T18:30:15.000+08:00|
|2024-11-30T09:30:00.000+08:00|  上海|    3002|      101|       F|        360|       90.0|    35.2|  true|                         null|
|2024-11-30T14:30:00.000+08:00|  上海|    3002|      101|       F|        360|       90.0|    34.8|  true|2024-11-30T14:30:17.000+08:00|
|2024-11-26T13:37:00.000+08:00|  北京|    1001|      100|       A|        180|       90.0|    35.1|  true|2024-11-26T13:37:34.000+08:00|
|2024-11-26T13:38:00.000+08:00|  北京|    1001|      100|       A|        180|       90.0|    35.1|  true|2024-11-26T13:38:25.000+08:00|
|2024-11-28T08:00:00.000+08:00|  上海|    3001|      100|       C|         90|       85.0|    null|  null|2024-11-28T08:00:09.000+08:00|
|2024-11-28T09:00:00.000+08:00|  上海|    3001|      100|       C|         90|       null|    40.9|  true|                         null|
|2024-11-28T10:00:00.000+08:00|  上海|    3001|      100|       C|         90|       85.0|    35.2|  null|2024-11-28T10:00:11.000+08:00|
+-----------------------------+------+--------+---------+--------+-----------+-----------+--------+------+-----------------------------+
Total line number = 10
It costs 0.159s

Example 2: Read TsFiles from a Directory

SELECT time, device_id, temperature
FROM TABLE(
  read_tsfile(
    TABLE_NAME => 'table1',
    PATHS => '/data/backup'
  )
)
WHERE time >= 2024-11-28 00:00:00 AND time < 2024-11-29 00:00:00 ;

Result:

+-----------------------------+---------+-----------+
|                         time|device_id|temperature|
+-----------------------------+---------+-----------+
|2024-11-28T08:00:00.000+08:00|      100|       85.0|
|2024-11-28T09:00:00.000+08:00|      100|       null|
|2024-11-28T10:00:00.000+08:00|      100|       85.0|
|2024-11-28T11:00:00.000+08:00|      100|       88.0|
+-----------------------------+---------+-----------+
Total line number = 4
It costs 0.116s

Example 3: Aggregate by TAG

SELECT device_id, count(temperature)
FROM TABLE(
  read_tsfile(
    TABLE_NAME => 'table1',
    PATHS => '/data/backup'
  )
)
GROUP BY device_id;

Result:

+---------+-----+
|device_id|_col1|
+---------+-----+
|      100|    6|
|      101|    6|
+---------+-----+
Total line number = 2
It costs 0.049s

7. Time-Series Trend Matching Table Function

7.1 Description

The pattern_match table function searches a historical time series for subsequences that match an input pattern sequence and returns all matches satisfying the specified threshold, result bounds, and other conditions.

Supported since V2.0.12.1

7.2 Function Definition

pattern_match(
  data => {table_name | subquery} PARTITION BY partition_col ORDER BY time_col,
  [time_col => 'time_column_name',]
  data_col => 'data_column_name',
  pattern => 'pattern_sequence',
  smooth => numeric_value,
  threshold => numeric_value,
  [width => numeric_value,]
  [height => numeric_value,]
  [smooth_on_pattern => {true | false}]
)

7.3 Parameters

Parameter	Type	Required	Default	Description
data	Table name or subquery	Yes	-	Table or subquery containing the time series. The time column must be ordered. Supports PARTITION BY for partitioning and ORDER BY for sorting by time.
time_col	String	No	'time'	Name of the time column. Only the TIMESTAMP type is supported.
data_col	String	Yes	-	Name of the series column. Supported types: INT32, INT64, DOUBLE, and FLOAT.
pattern	String	Yes	-	Numeric sequence to match, supporting ordinary trend sequences and regular-expression rules: 1. Basic format: comma-separated integers or floating-point values, such as '1.0,2.0,3.0'. 2. Regular-expression extensions: {segment}+ repeats a segment at least once, and {segment}* repeats it zero or more times. {, }*, and }+ are separate units. 3. The leftmost point of each segment is shared with the preceding segment.
smooth	Non-negative real number	Yes	-	Tolerance for fluctuations (smoothing level). Larger values tolerate greater fluctuations but may oversmooth normal data. A recommended starting value is 1% of the value range; adjust it to the series.
threshold	Non-negative real number	Yes	-	Similarity threshold. Only matches with a similarity value below this threshold are returned. Smaller values require a closer match. Start at 1 and increase as needed.
width	Non-negative real number	No	Unlimited	Maximum width of a match. Only subsequences with a timestamp span below this value are returned.
height	Non-negative real number	No	Unlimited	Maximum height of a match. Only subsequences with a height below this value are returned.
smooth_on_pattern	Boolean	No	false	Whether to smooth the pattern: 1. false: treats the pattern as a trend shape and smooths only the original series. 2. true: applies the same smoothing and noise reduction to both the pattern and the original series.

Returned Results

Only rows belonging to matching segments are retained, in ascending match_index order. Unmatched rows are discarded.

Column	Type	Description
match_index	INT32	Non-negative integer identifying the matched segment.
similarity	DOUBLE	Non-negative similarity value for the segment and pattern. Smaller values indicate closer matches.
All columns from data	Same as input	Original data from all columns of the input data argument.

7.4 Usage Examples

The following examples demonstrate basic pattern matching, parameter adjustment, regular-expression patterns, and smoothing.

7.4.1 Prepare Test Data

Create a table and insert data:

create table test(value DOUBLE FIELD, value1 DOUBLE FIELD);
INSERT INTO test VALUES (1, 1, 0),(2, 2, 0),(3, 1, 0),(4, 1, 0),(5, 1, 0),(6, 1.2, 0),(7, 1, 0),(8, 1, 0),(9, 2, 0),(10, 3, 0),(11, 4, 0),(12, 3, 0),(13, 2, 0),(14, 3, 0),(15, 4, 0),(16, 2, 0),(17, 1, 0),(18, 1, 0),(19, 1, 0),(20, 1, 0),(21, 1, 0),(41, 1, 0),(42, 2, 0),(43, 3, 0),(44, 4, 0),(45, 3, 0),(46, 2, 0),(47, 2, 0),(48, 2, 0),(49, 2, 0),(50, 2, 0),(51, 2, 0),(52, 2, 0);

Query the data:

select * from test;

The data is shown below:

7.4.2 Basic Trend Matching

Use an ordinary sequence as the pattern to find subsequences with a similar trend.

select * from pattern_match(
  data => test ORDER BY time,
  time_col => 'time',
  data_col => 'value',
  pattern => '1.0,2.0,3.0,2.0,1.0,1.0,1.0,1.0,1.0',
  smooth => 0.5,
  threshold => 10.0,
  width => 1000.0,
  height => 500.0,
  smooth_on_pattern=> false
);

The matching results are shown below:

The query returns 3 matching segments. A smaller similarity value indicates a closer match.

+-----------+------------------+-----------------------------+-----+------+
|match_index|        similarity|                         time|value|value1|
+-----------+------------------+-----------------------------+-----+------+
|          0| 4.637180787192477|1970-01-01T08:00:00.001+08:00|  1.0|   0.0|
|          0| 4.637180787192477|1970-01-01T08:00:00.002+08:00|  2.0|   0.0|
|          0| 4.637180787192477|1970-01-01T08:00:00.003+08:00|  1.0|   0.0|
|          0| 4.637180787192477|1970-01-01T08:00:00.004+08:00|  1.0|   0.0|
|          0| 4.637180787192477|1970-01-01T08:00:00.005+08:00|  1.0|   0.0|
|          0| 4.637180787192477|1970-01-01T08:00:00.006+08:00|  1.2|   0.0|
|          0| 4.637180787192477|1970-01-01T08:00:00.007+08:00|  1.0|   0.0|
|          0| 4.637180787192477|1970-01-01T08:00:00.008+08:00|  1.0|   0.0|
|          1|0.6465473220616865|1970-01-01T08:00:00.013+08:00|  2.0|   0.0|
|          1|0.6465473220616865|1970-01-01T08:00:00.014+08:00|  3.0|   0.0|
|          1|0.6465473220616865|1970-01-01T08:00:00.015+08:00|  4.0|   0.0|
|          1|0.6465473220616865|1970-01-01T08:00:00.016+08:00|  2.0|   0.0|
|          1|0.6465473220616865|1970-01-01T08:00:00.017+08:00|  1.0|   0.0|
|          1|0.6465473220616865|1970-01-01T08:00:00.018+08:00|  1.0|   0.0|
|          1|0.6465473220616865|1970-01-01T08:00:00.019+08:00|  1.0|   0.0|
|          1|0.6465473220616865|1970-01-01T08:00:00.020+08:00|  1.0|   0.0|
|          1|0.6465473220616865|1970-01-01T08:00:00.021+08:00|  1.0|   0.0|
|          2| 0.679768727042932|1970-01-01T08:00:00.041+08:00|  1.0|   0.0|
|          2| 0.679768727042932|1970-01-01T08:00:00.042+08:00|  2.0|   0.0|
|          2| 0.679768727042932|1970-01-01T08:00:00.043+08:00|  3.0|   0.0|
|          2| 0.679768727042932|1970-01-01T08:00:00.044+08:00|  4.0|   0.0|
|          2| 0.679768727042932|1970-01-01T08:00:00.045+08:00|  3.0|   0.0|
|          2| 0.679768727042932|1970-01-01T08:00:00.046+08:00|  2.0|   0.0|
|          2| 0.679768727042932|1970-01-01T08:00:00.047+08:00|  2.0|   0.0|
|          2| 0.679768727042932|1970-01-01T08:00:00.048+08:00|  2.0|   0.0|
|          2| 0.679768727042932|1970-01-01T08:00:00.049+08:00|  2.0|   0.0|
|          2| 0.679768727042932|1970-01-01T08:00:00.050+08:00|  2.0|   0.0|
|          2| 0.679768727042932|1970-01-01T08:00:00.051+08:00|  2.0|   0.0|
|          2| 0.679768727042932|1970-01-01T08:00:00.052+08:00|  2.0|   0.0|
+-----------+------------------+-----------------------------+-----+------+
Total line number = 29
It costs 0.126s

7.4.3 Adjust Matching Conditions

Each example below starts from the query in Section 7.4.2 and changes only the indicated argument.

Purpose	Parameter	Original Value	New Value	Effect
Require a closer match	threshold	10.0	1.0	Retains only results with similarity below 1.0, reducing the number of matching segments from 3 to 2.
Limit the time span	width	1000.0	10.0	Returns only subsequences with a timestamp span below 10.0.
Limit the value range	height	500.0	2.0	Returns only subsequences with a value range below 2.0.

7.4.4 Regular-Expression Patterns

Regular-expression patterns can match repeated trend segments.

Repetition Symbol	Meaning
+	The preceding subsequence occurs at least once.
*	The preceding subsequence occurs zero or more times.

The following example uses + to match one or more occurrences of 2.0,3.0,2.0:

select * from pattern_match(
  data              => test ORDER BY time,
  time_col          => 'time',
  data_col          => 'value',
  pattern           => '1.0,{2.0,3.0,2.0}+,1.0,1.0,1.0,1.0,1.0',
  smooth            => 0.5,
  threshold         => 100.0,
  width             => 1000.0,
  height            => 500.0,
  smooth_on_pattern => false
);

To allow zero or more occurrences of 2.0,3.0,2.0, replace + with *:

pattern => '1.0,{2.0,3.0,2.0}*,1.0,1.0,1.0,1.0,1.0'

Regular-expression patterns are useful for periodic fluctuations, repeated peaks, and trend matches of variable length.

7.4.5 Pattern Smoothing

When the pattern contains small fluctuations, use smooth_on_pattern to control whether the pattern is also smoothed.

The following examples show the results of two configurations:

Configuration	threshold	smooth_on_pattern	Matching Behavior
Smooth both the original series and the pattern	1.0	true	Matches the 1.0,1.2,1.0 fluctuation in the original data.
Smooth only the original series	10.0	false	Returns other trend matches but excludes the corresponding 1.0,1.2,1.0 fluctuation.

Smooth both the original series and the pattern:

SELECT *
FROM pattern_match(
  data              => test ORDER BY time,
  time_col          => 'time',
  data_col          => 'value',
  pattern           => '1.0,1.2,1.0',
  smooth            => 0.5,
  threshold         => 1.0,
  width             => 1000.0,
  height            => 500.0,
  smooth_on_pattern => true
);

With the same smoothing rules applied to both sequences, the query matches the 1.0,1.2,1.0 fluctuation at time points 5, 6, and 7.

The results are shown below:

Smooth only the original series:

SELECT *
FROM pattern_match(
  data              => test ORDER BY time,
  time_col          => 'time',
  data_col          => 'value',
  pattern           => '1.0,1.2,1.0',
  smooth            => 0.5,
  threshold         => 10.0,
  width             => 1000.0,
  height            => 500.0,
  smooth_on_pattern => false
);

With smoothing applied only to the original series, the query still returns other trend matches, but the 1.0,1.2,1.0 fluctuation at time points 5, 6, and 7 is not matched.

The results are shown below:

8. Frequency-Domain Analysis Functions

8.1 FFT

8.1.1 Description

FFT is a built-in table function in the table model. It performs a one-dimensional fast Fourier transform on one or more real-valued numeric series in each input partition. ORDER BY must specify the time column in ascending order. You can also use PARTITION BY to group data by device or TAG. Each partition generates its own frequency bins, and all numeric columns in the partition share the same frequency axis.

Supported since V2.0.12.1

8.1.2 Function Definition

Named-argument syntax:

SELECT *
FROM FFT(
  DATA => {table_name | subquery}
    [PARTITION BY partition_column [, ...]]
    ORDER BY time_column,
  [SAMPLE_INTERVAL => duration_literal,]
  [N => positive_integer,]
  [NORM => {'backward' | 'forward' | 'ortho'},]
  [TIMECOL => 'time_column']
);

Positional-argument syntax:

SELECT *
FROM TABLE(
  FFT(
    TABLE(table_name)
      [PARTITION BY partition_column [, ...]]
      ORDER BY time_column
    [, duration_literal
    [, positive_integer
    [, norm
    [, time_column_name]]]]
  )
);

The canonical argument order is DATA, SAMPLE_INTERVAL, N, NORM, TIMECOL. Named arguments are recommended to make complex calls easier to read.

8.1.3 Parameters

Parameter	Required	Type	Default	Description
DATA	Yes	Table argument	None	Input data for FFT. With PARTITION BY, each partition is calculated independently; without it, all input rows form one partition. All INT32, INT64, FLOAT, and DOUBLE columns except the time and partition columns participate in the calculation. Other column types are ignored. At least one numeric column is required, and participating columns cannot contain NULL. To transform only selected numeric columns, project them in an input subquery.
SAMPLE_INTERVAL	No	Positive duration literal	Inferred from the time column	Sampling interval used to calculate the frequency axis, such as 1ms, 10ms, or 1s. If omitted, it is inferred per partition as (last timestamp - first timestamp) / (input row count - 1). A single-row partition requires an explicit interval; an empty partition returns 0 rows.
N	No	Positive integer	Input row count of the current partition	FFT length. If smaller than the input row count, only the first N rows in timestamp order are transformed. If larger, the series is padded with zeros at the end. Each partition returns N rows. The maximum N is 65536, and N × 2 × number of participating numeric columns ≤ 16777216 must hold.
NORM	No	String	backward	Normalization mode, case-insensitive. backward: no normalization; forward: divide by N; ortho: divide by √N.
TIMECOL	No	String	time	Name of the time column, which must have type TIMESTAMP. DATA must be sorted only by this column in ascending order; DESC is unsupported. Timestamps within each partition must be strictly increasing, with no duplicates.

• FFT is generally intended for evenly sampled data. This function does not automatically detect or correct irregular sampling. Interpolate or resample the data before calculation to ensure accurate spectra. If the sampling interval is known, explicitly set SAMPLE_INTERVAL.
• When N is smaller than the input row count, the function still validates all input rows in the partition, although only the first N rows are transformed.

Returned Results

FFT returns the full two-sided spectrum for each partition, with columns in the following order:

partition_columns...
frequency_index
frequency
<numeric_column>_real
<numeric_column>_imag
...

Output Column	Type	Description
Columns specified by PARTITION BY	Same as input	Retain their original names and types and appear first in the result. Omitted when PARTITION BY is not used.
frequency_index	INT64	Frequency-bin index, from 0 to N-1.
frequency	DOUBLE	Frequency of the current bin, in Hz.
<numeric_column>_real	DOUBLE	Real part of the FFT for the corresponding numeric input column.
<numeric_column>_imag	DOUBLE	Imaginary part of the FFT for the corresponding numeric input column.

For transform length N and sampling interval d in seconds, frequency is calculated as follows:

frequency_index Range	frequency
frequency_index < ceil(N / 2)	frequency_index / (N × d)
Otherwise	(frequency_index - N) / (N × d)

Frequencies are ordered as zero, positive, then negative frequencies, in Hz. All numeric columns within a partition share the same frequency axis.

8.1.4 Notes

• The function name FFT is case-insensitive. Each partition performs a separate one-dimensional FFT.
• The current version supports only real-valued input. Complex input, DFT, and IFFT are unsupported.
• The current version returns only the real and imaginary parts of the full spectrum. One-sided spectra, amplitude output, and phase output are unsupported.
• The VALUE, SAMPLE_RATE, and SPECTRUM arguments are unsupported in the current version.

8.1.5 Usage Examples

These examples use table1. Because temperature contains NULL values, filter them out in the input subquery.

Example 1: FFT by Device

SELECT *
FROM FFT(
  DATA => (
    SELECT time, device_id, temperature
    FROM table1
    WHERE plant_id = '1001'
      AND temperature IS NOT NULL
  ) PARTITION BY device_id ORDER BY time
)
ORDER BY device_id, frequency_index;

The function transforms temperature separately for each device. With N and SAMPLE_INTERVAL omitted, the transform length is the input row count of each partition, and the sampling interval is inferred from the time column. In this example, the sampling interval is 1 minute.

+---------+---------------+---------------------+----------------------+---------------------+
|device_id|frequency_index|            frequency|      temperature_real|     temperature_imag|
+---------+---------------+---------------------+----------------------+---------------------+
|      100|              0|                  0.0|                 180.0|                  0.0|
|      100|              1|-0.008333333333333333|                   0.0|                  0.0|
|      101|              0|                  0.0|                 255.0| -6.67572021484375E-6|
|      101|              1| 0.005555555555555556|-4.6126147026370745E-6|-5.266308107820805E-6|
|      101|              2|-0.005555555555555556|   -1.9073486328125E-6| 3.303624680484063E-6|
+---------+---------------+---------------------+----------------------+---------------------+

Example 2: Specify Transform Length and Normalization

SELECT *
FROM FFT(
  DATA => (
    SELECT time, device_id, temperature
    FROM table1
    WHERE plant_id = '1001'
      AND temperature IS NOT NULL
  ) PARTITION BY device_id ORDER BY time,
  SAMPLE_INTERVAL => 1m,
  N => 4,
  NORM => 'ortho'
)
ORDER BY device_id, frequency_index;

The transform length is set to 4 for each device. Series with fewer than 4 input rows are padded with zeros at the end. FFT results are normalized by 1/√N. Each device returns 4 spectrum rows.

+---------+---------------+---------------------+----------------------+----------------+
|device_id|frequency_index|            frequency|      temperature_real|temperature_imag|
+---------+---------------+---------------------+----------------------+----------------+
|      100|              0|                  0.0|                  90.0|             0.0|
|      100|              1| 0.004166666666666667|                  45.0|           -45.0|
|      100|              2|-0.008333333333333333|                   0.0|             0.0|
|      100|              3|-0.004166666666666667|                  45.0|            45.0|
|      101|              0|                  0.0|                 127.5|             0.0|
|      101|              1| 0.004166666666666667| 2.602374475716698E-15|           -42.5|
|      101|              2|-0.008333333333333333|                  42.5|             0.0|
|      101|              3|-0.004166666666666667|-2.602374475716698E-15|            42.5|
+---------+---------------+---------------------+----------------------+----------------+

Example 3: Numeric Column Contains NULL

SELECT *
FROM FFT(
  DATA => (
    SELECT time, device_id, temperature
    FROM table1
    WHERE plant_id = '1001'
  ) PARTITION BY device_id ORDER BY time
);

The query fails because numeric columns participating in FFT cannot contain NULL:

Msg: org.apache.iotdb.jdbc.IoTDBSQLException: 701: FFT does not support null values in column [temperature].

Filter out null values with IS NOT NULL in the input subquery before running FFT.

8.2 lowPass

8.2.1 Description

lowPass is a low-pass filter that applies frequency-domain filtering to numeric columns in the input table. It retains low-frequency components and attenuates high-frequency components, making it useful for signal smoothing and high-frequency noise removal. The normalized passband frequency wpass, in the range (0, 1), specifies the upper frequency bound of the passband.

Supported since V2.0.12.1

8.2.2 Function Definition

Named-argument syntax:

SELECT *
FROM lowPass(
  DATA => input_table PARTITION BY partition_column ORDER BY time_column,
  TIMECOL => 'time_column',
  WPASS => passband_frequency
);

Positional-argument syntax:

SELECT *
FROM lowPass(
  input_table PARTITION BY partition_column ORDER BY time_column,
  'time_column',
  passband_frequency
);

8.2.3 Parameters

Parameter	Type	Required	Description
DATA	Table argument (SET SEMANTIC)	Yes	Input table or subquery. ORDER BY must contain only the time column in ascending order. PARTITION BY is optional; if omitted, the entire table is treated as one partition.
TIMECOL	String	Yes	Name of the time column. Must identify exactly one column of type TIMESTAMP.
WPASS	DOUBLE	Yes	Normalized passband frequency in (0, 1). Components below this frequency are retained, and those above it are attenuated.

Calculation Rules

• Columns specified by TIMECOL and PARTITION BY are excluded from calculations but retained in the output.
• Apart from the time and partition columns, only INT32, INT64, FLOAT, and DOUBLE columns can participate. Analysis fails if no eligible column remains or if any other column type is present.
• NULL values in a participating column are excluded from that column's filtering calculation.

Returned Results

• The output includes the partition columns, if specified, and the time column, with their original names and types.
• Each participating numeric column produces a filtered result column of type DOUBLE. Each result column has the same number of points as its corresponding input column, output in ascending timestamp order.

8.2.4 Usage Example

The following example uses table1.

SELECT *
FROM lowPass(
  DATA => (
     SELECT time, device_id, temperature
     FROM table1
     WHERE temperature is not null
  ) PARTITION BY device_id  ORDER BY time,
  TIMECOL => 'time',
  WPASS => 0.3
);

The example partitions data by device, applies low-pass filtering to temperature, and returns device_id, time, and the filtered numeric column.

+---------+-----------------------------+--------------------+
|device_id|                         time|lowpass(temperature)|
+---------+-----------------------------+--------------------+
|      100|2024-11-26T13:37:00.000+08:00|                88.0|
|      100|2024-11-26T13:38:00.000+08:00|                88.0|
|      100|2024-11-28T08:00:00.000+08:00|   87.99999999999999|
|      100|2024-11-28T10:00:00.000+08:00|   87.99999999999999|
|      100|2024-11-28T11:00:00.000+08:00|   88.00000000000001|
|      100|2024-11-29T18:30:00.000+08:00|                88.0|
|      101|2024-11-27T16:39:00.000+08:00|   86.66666666666667|
|      101|2024-11-27T16:40:00.000+08:00|   86.66666666666667|
|      101|2024-11-27T16:41:00.000+08:00|   86.66666666666664|
|      101|2024-11-29T10:00:00.000+08:00|   86.66666666666664|
|      101|2024-11-30T09:30:00.000+08:00|   86.66666666666667|
|      101|2024-11-30T14:30:00.000+08:00|   86.66666666666664|
+---------+-----------------------------+--------------------+

8.3 highPass

8.3.1 Description

highPass is a high-pass filter that applies frequency-domain filtering to numeric columns in the input table. It retains high-frequency components and attenuates low-frequency components, making it useful for extracting rapid changes, abrupt transitions, and high-frequency noise. The normalized passband frequency wpass, in the range (0, 1), specifies the lower frequency bound of the passband.

Supported since V2.0.12.1

8.3.2 Function Definition

Named-argument syntax:

SELECT *
FROM highPass(
  DATA => input_table PARTITION BY partition_column ORDER BY time_column,
  TIMECOL => 'time_column',
  WPASS => passband_frequency
);

Positional-argument syntax:

SELECT *
FROM highPass(
  input_table PARTITION BY partition_column ORDER BY time_column,
  'time_column',
  passband_frequency
);

8.3.3 Parameters

Parameter	Type	Required	Description
DATA	Table argument (SET SEMANTIC)	Yes	Input table or subquery. ORDER BY must contain only the time column in ascending order. PARTITION BY is optional; if omitted, the entire table is treated as one partition.
TIMECOL	String	Yes	Name of the time column. Must identify exactly one column of type TIMESTAMP.
WPASS	DOUBLE	Yes	Normalized passband frequency in (0, 1). Components above this frequency are retained, and those below it are attenuated.

Input Columns and Calculation Rules

• Columns specified by TIMECOL and PARTITION BY are excluded from calculations but retained in the output.
• Apart from the time and partition columns, only INT32, INT64, FLOAT, and DOUBLE columns can participate. Analysis fails if no eligible column remains or if any other column type is present.
• NULL values in a participating column are excluded from that column's filtering calculation.

Returned Results

• The output includes the partition columns, if specified, and the time column, with their original names and types.
• Each participating numeric column produces a filtered result column of type DOUBLE. Each result column has the same number of points as its corresponding input column, output in ascending timestamp order.

8.3.4 Usage Example

SELECT *
FROM highPass(
  DATA => (
     SELECT time, device_id, temperature
     FROM table1
     WHERE temperature is not null
  ) PARTITION BY device_id  ORDER BY time,
  TIMECOL => 'time',
  WPASS => 0.3
);

The example partitions data by device, applies high-pass filtering to temperature, and returns device_id, time, and the filtered numeric column.

+---------+-----------------------------+----------------------+
|device_id|                         time| highpass(temperature)|
+---------+-----------------------------+----------------------+
|      100|2024-11-26T13:37:00.000+08:00|     2.000000000000029|
|      100|2024-11-26T13:38:00.000+08:00|     2.000000000000004|
|      100|2024-11-28T08:00:00.000+08:00|   -2.9999999999999702|
|      100|2024-11-28T10:00:00.000+08:00|    -3.000000000000013|
|      100|2024-11-28T11:00:00.000+08:00|-4.182831670630972E-14|
|      100|2024-11-29T18:30:00.000+08:00|    1.9999999999999953|
|      101|2024-11-27T16:39:00.000+08:00|    -1.666666666666642|
|      101|2024-11-27T16:40:00.000+08:00|   -1.6666666666666519|
|      101|2024-11-27T16:41:00.000+08:00|    -1.666666666666645|
|      101|2024-11-29T10:00:00.000+08:00|    -1.666666666666701|
|      101|2024-11-30T09:30:00.000+08:00|    3.3333333333333015|
|      101|2024-11-30T14:30:00.000+08:00|     3.333333333333338|
+---------+-----------------------------+----------------------+

9. Time-Series Correlation Analysis Functions

9.1 Xcorr

9.1.1 Description

Xcorr performs cross-correlation analysis on two numeric series to measure their shape similarity at different time lags. It shifts one series relative to the other, multiplies corresponding points, and sums the products to produce a similarity curve. This can reveal delays and similar patterns between two signals.

Supported since V2.0.12.1

9.1.2 Function Definition

Named-argument syntax:

SELECT *
FROM Xcorr(
  DATA => (
    SELECT time_column, signal_1, signal_2, partition_column
    FROM input_table
  ) PARTITION BY partition_column ORDER BY time_column,
  TIMECOL => 'time_column'
);

Positional-argument syntax:

SELECT *
FROM Xcorr(
    ( SELECT time_column, signal_1, signal_2, partition_column
      FROM input_table
    ) PARTITION BY partition_column ORDER BY time_column,
    'time_column'
);

9.1.3 Parameters

Parameter	Type	Required	Description
DATA	Table argument (SET SEMANTIC)	Yes	Input table or subquery. ORDER BY must specify the time column in ascending order. PARTITION BY is optional. Exactly two numeric columns must remain after excluding the time and partition columns.
TIMECOL	String	Yes	Name of the time column. Must identify exactly one column of type TIMESTAMP.

Calculation Rules

• The time and partition columns are excluded from cross-correlation calculations.
• Exactly two columns must remain after those columns are excluded. Both must be of type INT32, INT64, FLOAT, or DOUBLE; otherwise, analysis fails.
• NULL values in either participating column are treated as 0 at that position.
• Timestamps must be strictly increasing within each partition.
• Normalization is applied according to the function definition.

Returned Results

• Partition columns specified by PARTITION BY, if any, retain their original names and types.
• One result column of type DOUBLE is generated for the two participating columns.

9.1.4 Usage Example

The following example uses table1 from the SQL manual's sample data. A subquery selects the two numeric series, temperature and humidity, for cross-correlation.

SELECT *
FROM Xcorr(
  DATA => (
    SELECT time, device_id, temperature, humidity
    FROM table1
    WHERE temperature IS NOT NULL
      AND humidity IS NOT NULL
  )
  PARTITION BY device_id
  ORDER BY time,
  TIMECOL => 'time'
);

The example partitions data by device, cross-correlates temperature and humidity, and returns device_id and the correlation result column.

+---------+----------------------------+
|device_id|xcorr(temperature, humidity)|
+---------+----------------------------+
|      100|          3186.0001373291016|
|      100|                      3622.5|
|      100|          3412.0000203450522|
|      100|          3318.9249839782715|
|      100|          3292.9599586486815|
|      100|          3324.7749156951904|
|      100|          3080.0999348958335|
|      100|          3123.8998641967773|
|      100|          3158.9998626708984|
|      101|          2957.9999351501465|
|      101|          3061.9999980926514|
|      101|           3100.166645050049|
|      101|                      3172.5|
|      101|           3176.999931335449|
+---------+----------------------------+
